Virtual Machine Setup¶

1) Setup a ubuntu desktop vm on your windows computer with vmware vmware Ubuntu Desktop

2) Set username to mrrdt-iarc-desk-initals - (EX: mrrdt-iarc-desk-mw)

3) Set password to mrrdt

4) System Settings: - Memory: 4096mb or 8192mb

Processor: 4-6 cpu cores

5) USB Settings:

- Make sure USB 3.0 is enabled

- Right click and add filter from device for the wifi adapter

6) Power up the vm and login

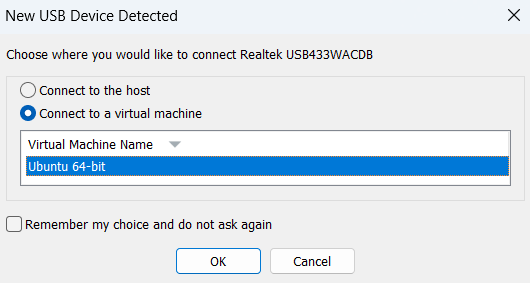

7) Plug in your wifi adapter - (Make sure to select "Connect to virtual machine" and click the select the virtual machine from the list when you plug usb in) usb prompt - If you forget go to VM -> Removable Devices -> Wifi Adapter and assign to VM (This step needs to be done every time vm is booted up)

8) Open the terminal

9) Run lsusb and verify that wifi adapter is there

10) Run ip link and verify that wlx08beac45dcb0 () is there

BATMAN Setup¶

1) Use these commands to install uv ``` sudo apt install curl

curl -LsSf https://astral.sh/uv/install.sh | sh

sudo mv ~/.local/bin/uv /usr/local/bin/uv

sudo mv ~/.local/bin/uvx /usr/local/bin/uvx

source $HOME/.local/bin/env

uv python install 3.14 ```

2) Set the regulatory domain permanently (required for 5GHz mesh on channel 40):

sudo apt install -y iw wireless-regdb
sudo iw reg set US
echo 'REGDOMAIN=US' | sudo tee /etc/default/crda
sudo reboot

3) Install batman-adv

sudo apt-get update
sudo apt-get install batctl bridge-utils
sudo modprobe batman-adv

3) Create a folder for iarc and enter it

mkdir IARC-DEV

cd IARC-DEV

4) Git clone the IARC repo in

5) Go to interdrone-communication or wherever the vm-batman-setup.sh is stored

6) Run the vm-batman-setup.sh (This step needs to be done every time vm is booted up)

sudo bash vm-batman-setup.sh

Batman should be running. Verify with¶

sudo batctl o
iw dev wlx08beac45dcb7 link
sudo batctl n

If the Pis are runing you should see mesh neighbors including Pi 1 (169.254.97.1) and other nodes.

You can also test the connection through:

ping 169.254.97.1

Note: If you are running a batman network alongside another, you will need to change your targeted drone network from drone 1. This is on line 13 of: vm-batman-setup.sh

Troubleshooting:¶

1) VM not booting correctly

- Make sure settings are correct as seen in setup

- Literally just keep powercycling it (if setup is correct, this will hopefully always work)

2) VM not joining batman network correctly - First make sure USB Wifi Adapter is setup correctly with virtual machine - run sudo bash vm-batman-setup.sh

3) ibss join fails with Invalid argument (-22)

First try rebooting the virtual machine and re-plugin the usb wifi adapter ensuring you select the option to pass it through to the virtual machine. If that doesn't work try the solution below:

This is a regulatory domain issue.Fix it by setting the regulatory domain before joining:
```
sudo iw reg set US
sudo bash vm-batman-setup.sh
```

4) Adapter shows NO-CARRIER or state DOWN The adapter may not have joined the mesh. Run manually:

bashsudo iw reg set US
sudo ip link set wlx08beac45dcb0 down
sudo iw dev wlx08beac45dcb0 set type ibss
sudo ip link set wlx08beac45dcb0 up
sleep 2
sudo iw dev wlx08beac45dcb0 ibss join my-batman-mesh 5200 02:ca:fe:ca:ca:40
sudo batctl n

5) VM times out or suspends

In VMware go to Edit Virtual Machine Settings → Options → Power
Uncheck "Suspend when closing window"
Also disable sleep on the host machine under Windows power settings
